Control iD iDUHF Access Controller with UHF Reader
Control iD iDUHF — Access Controller with UHF Reader
Reads vehicle tags at up to 15 metres, and controls the gate itself

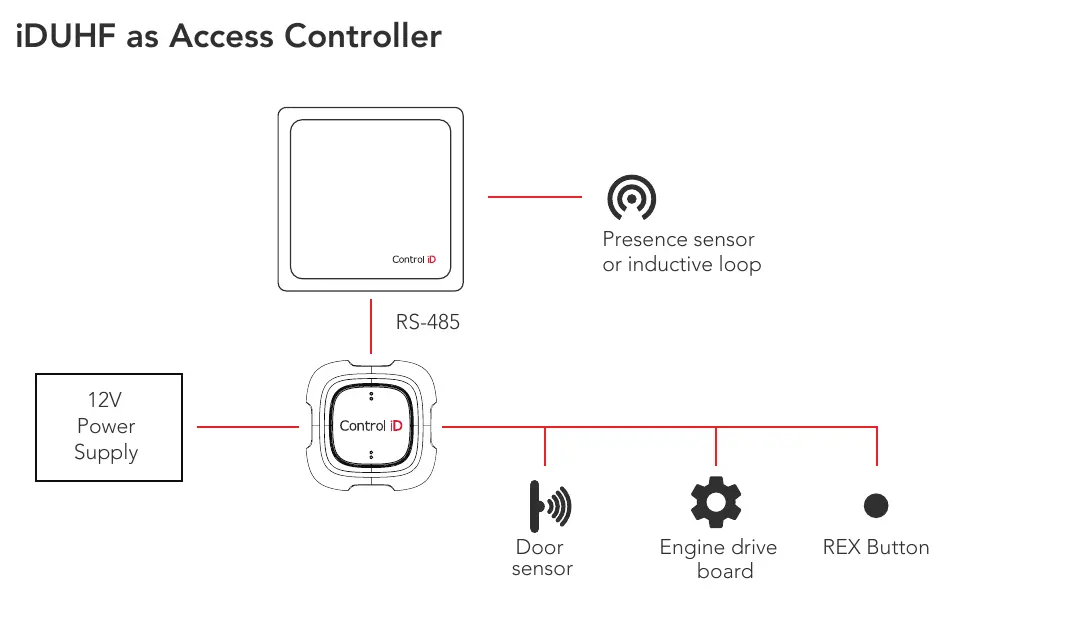

Control iD's iDUHF is an IP65-rated controller for monitoring and controlling vehicle access at corporate and residential estates. Its integrated UHF reader identifies vehicle tags at a range of up to 15 metres, and the device operates independently — handling both the reading and authentication of tags and the control of the external motor drive board, so no separate controller is needed between the reader and the gate.
It stores over 200,000 users and the same number of access records. Embedded web software configures the product, sets access rules by schedule and department, and generates reports from a browser — no client software to install.
This device is part of Openitem’s Control iD autonomous entry, attendance and occupancy solution — see how it is deployed, what it integrates with, and the rest of the range.
- Categories
- scanner/reader, Controller, Hardware
- Tags
- ControlID
Description
Vehicle access is the case the iDUHF is built for: a long-range UHF read means a tag on a windscreen is authenticated while the car is still approaching, so the gate is already moving rather than the driver stopping to present a credential.
The antenna measures 420 × 420 × 60 mm and the external drive module 52 × 52 × 22 mm. It runs from an external 12 V supply at 3.5 W, operates from –20 °C to 45 °C, and carries an IP65 rating for dust and water — it is meant to live outdoors at a gate.
Connectivity covers a native 10/100 Mbps Ethernet port, RS-485 with 120 Ohm termination, RS-232, a Wiegand output, a relay rated to 30 VAC / 5 A, and trigger and door-sensor inputs. It integrates with most garage door and gate controllers, and can equally be deployed as a plain UHF reader over Wiegand into a system that is already installed.
Transmit frequency is 865–868 MHz or 902–928 MHz depending on regional regulations. Made in Brazil.
Technical specifications
- Users: more than 200,000 registered users; capacity for over 200,000 access records
- Access rules: by schedule and department, managed from the integrated web software
- UHF reader: reading distance up to 15 m, depending on the tag and antenna installation
- Communication: Ethernet 10/100 Mbps, RS-485 (120 Ohm), RS-232, Wiegand output, relay to 30 VAC / 5 A, trigger and door-sensor inputs
- Dimensions: antenna 420 × 420 × 60 mm (2,270 g); drive module 52 × 52 × 22 mm (35 g)
- Power: external 12 V supply (not included), 3.5 W (300 mA) rated
- Environment: IP65, operating temperature –20 °C to 45 °C
- Frequency: 865–868 MHz / 902–928 MHz, subject to regional regulations
